How to view table structure in SQL?

To show the table structure with all its column’s attributes: name, datatype, primary key, default value, etc.

In SQL Server, use sp_help function:

sp_help [ [ @objname = ] table_name ]

In MySQL and Oracle, you can use DESCRIBE:

DESCRIBE table_name;

Or

DESC table_name;

In PostgreSQL, here is the go-to statement:

SELECT
  *
FROM
  INFORMATION_SCHEMA.COLUMNS
WHERE
  TABLE_NAME = table_name;

In SQLite, it’s as simple as this:

PRAGMA table_info(table_name);

Example

We have to table Customers in SQLite, and to view the table structure:

PRAGMA table_info(Customer);

Here is the results:

cid	name	type	notnull	dflt_value	pk
0	CustomerId	INTEGER	1		1
1	FirstName	NVARCHAR(40)	1		0
2	LastName	NVARCHAR(20)	1		0
3	Company	NVARCHAR(80)	0		0
4	Address	NVARCHAR(70)	0		0
5	City	NVARCHAR(40)	0		0
6	State	NVARCHAR(40)	0		0
7	Country	NVARCHAR(40)	0		0
8	PostalCode	NVARCHAR(10)	0		0
9	Phone	NVARCHAR(24)	0		0
10	Fax	NVARCHAR(24)	0		0
11	Email	NVARCHAR(60)	1		0
12	SupportRepId	INTEGER	0		0

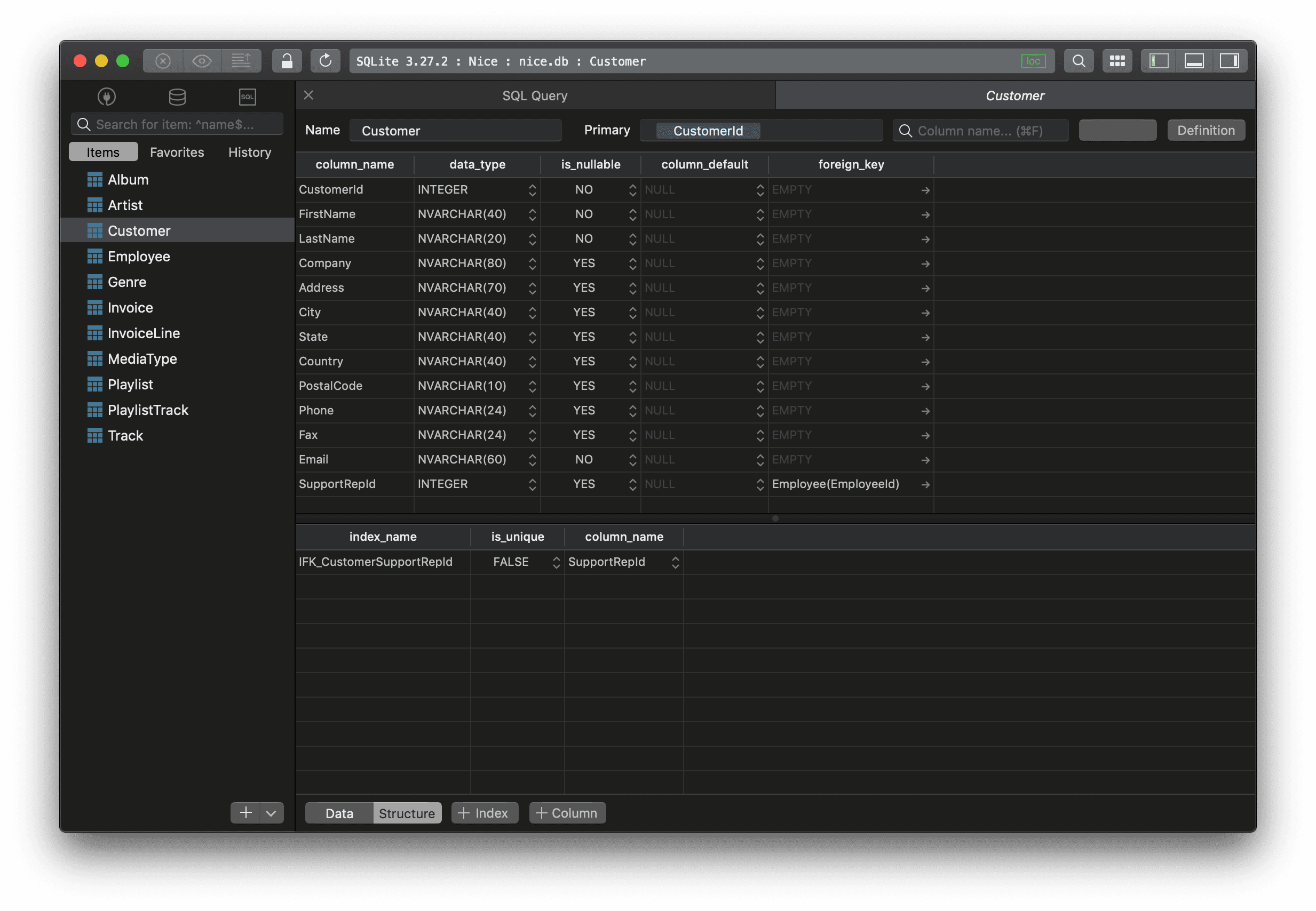

In TablePlus, you can view the table structure by clicking on the structure button at the bottom of the window, or use the shortcut key Cmd + Shift + ]

---
